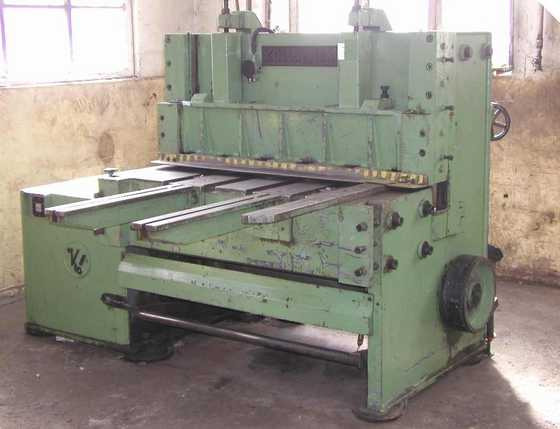

KÖLLSCHEN BS 100/12 - Tafelscheren

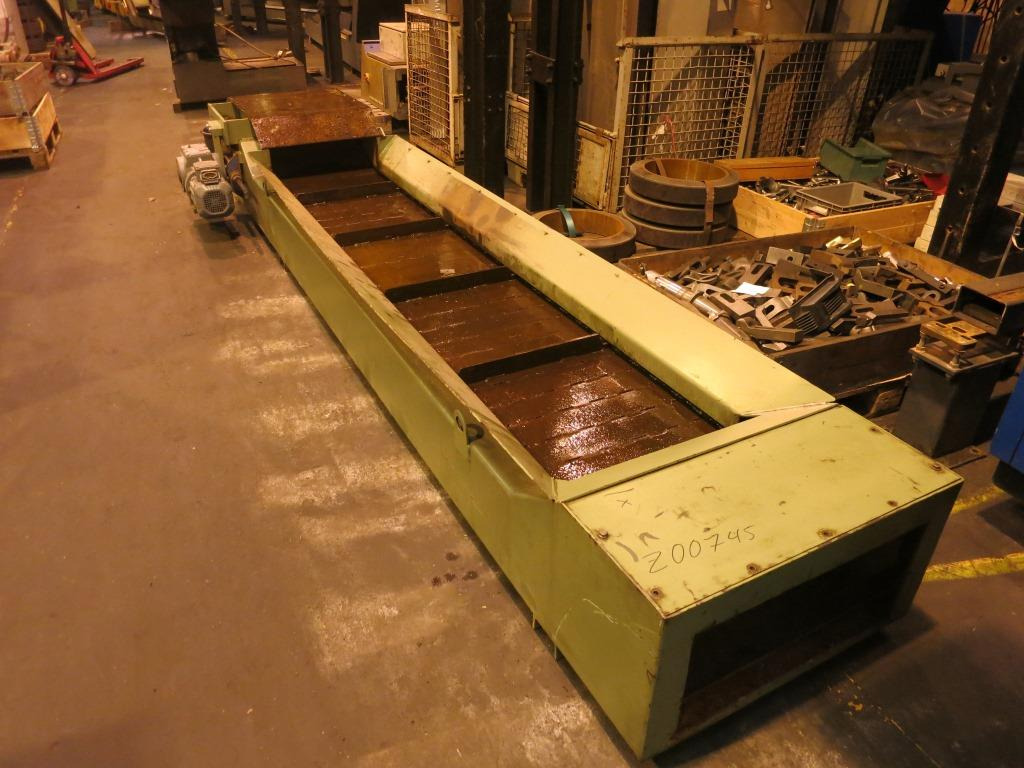

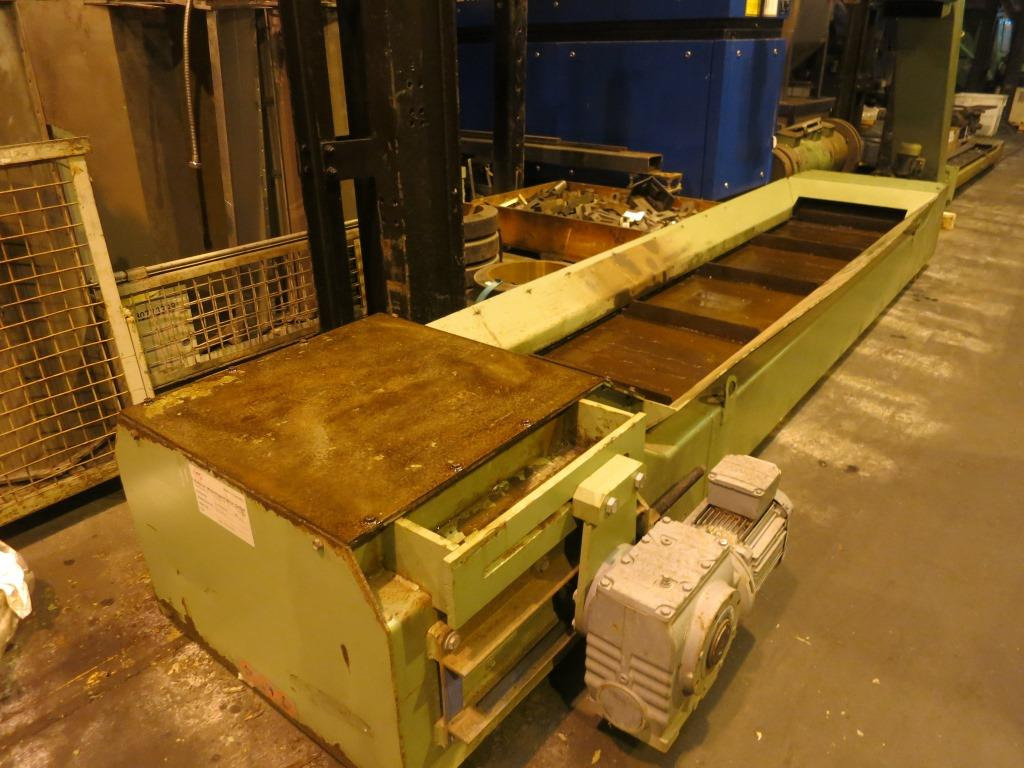

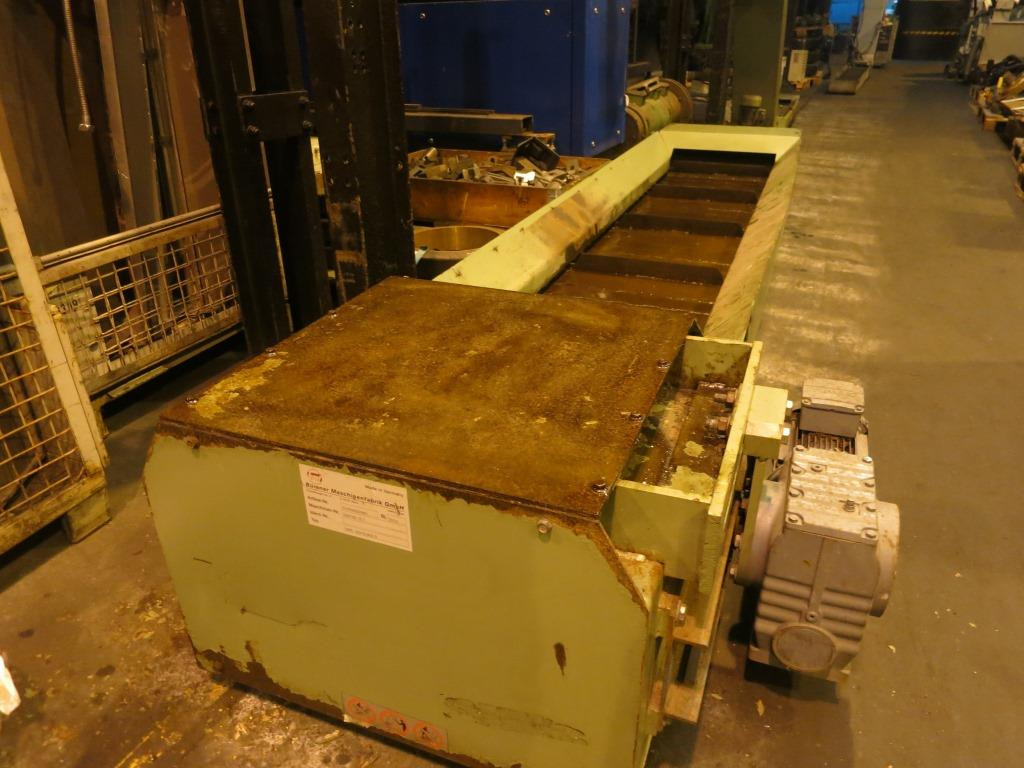

BMT SPE100/10-600G

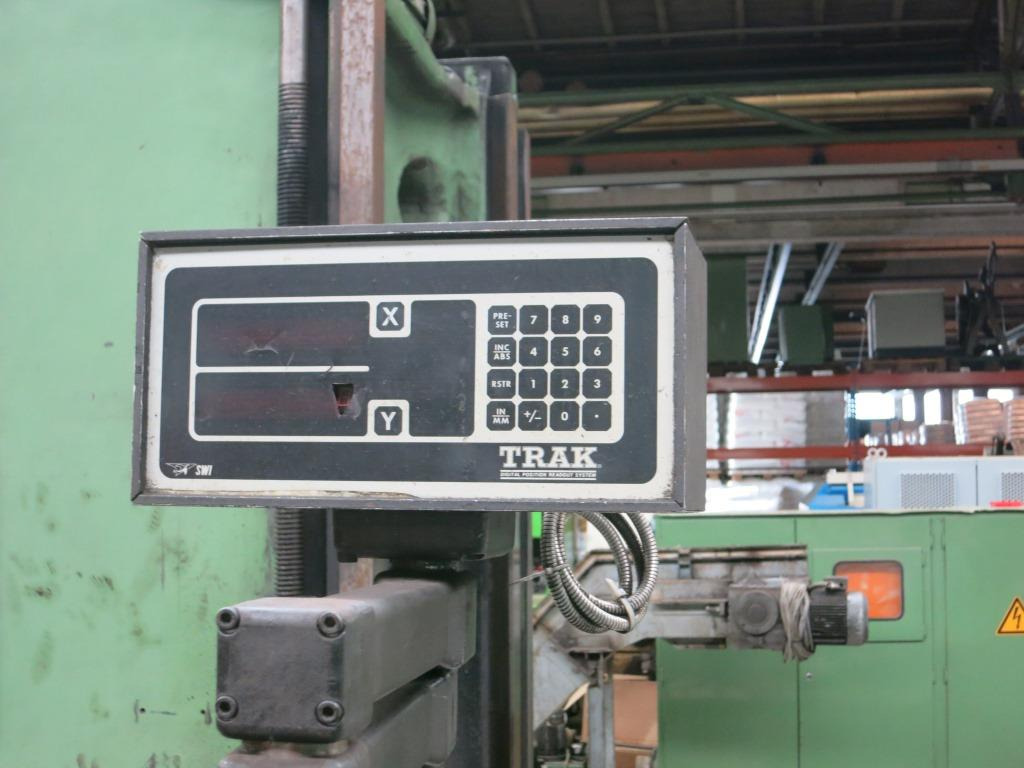

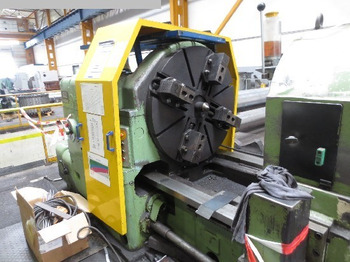

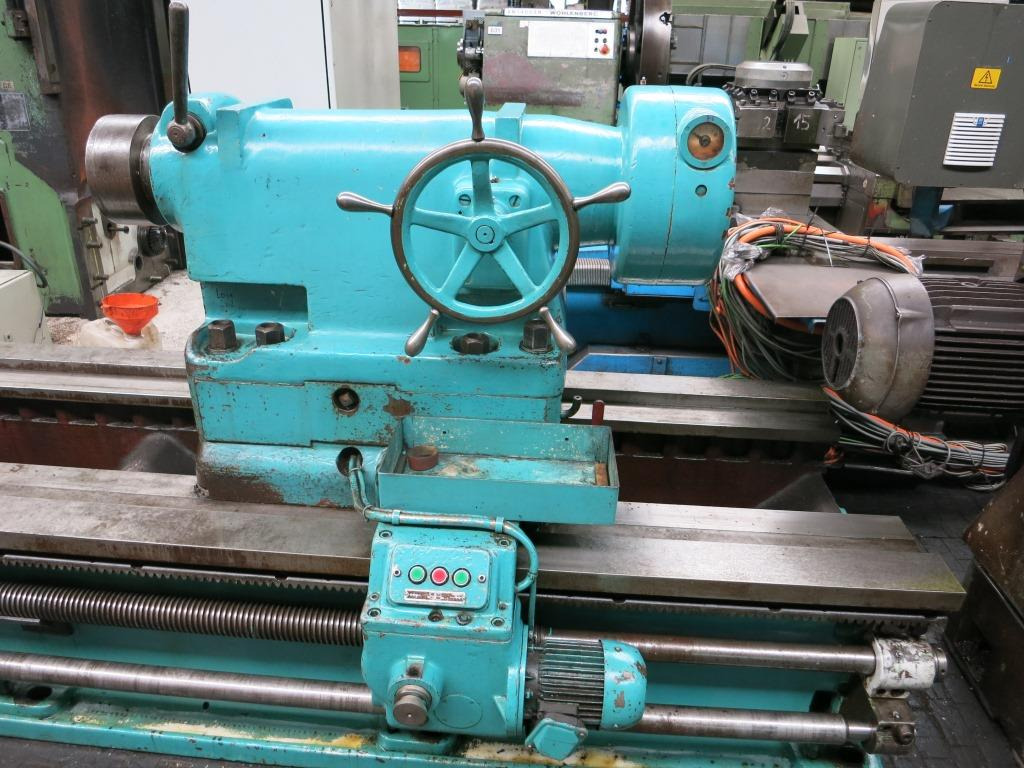

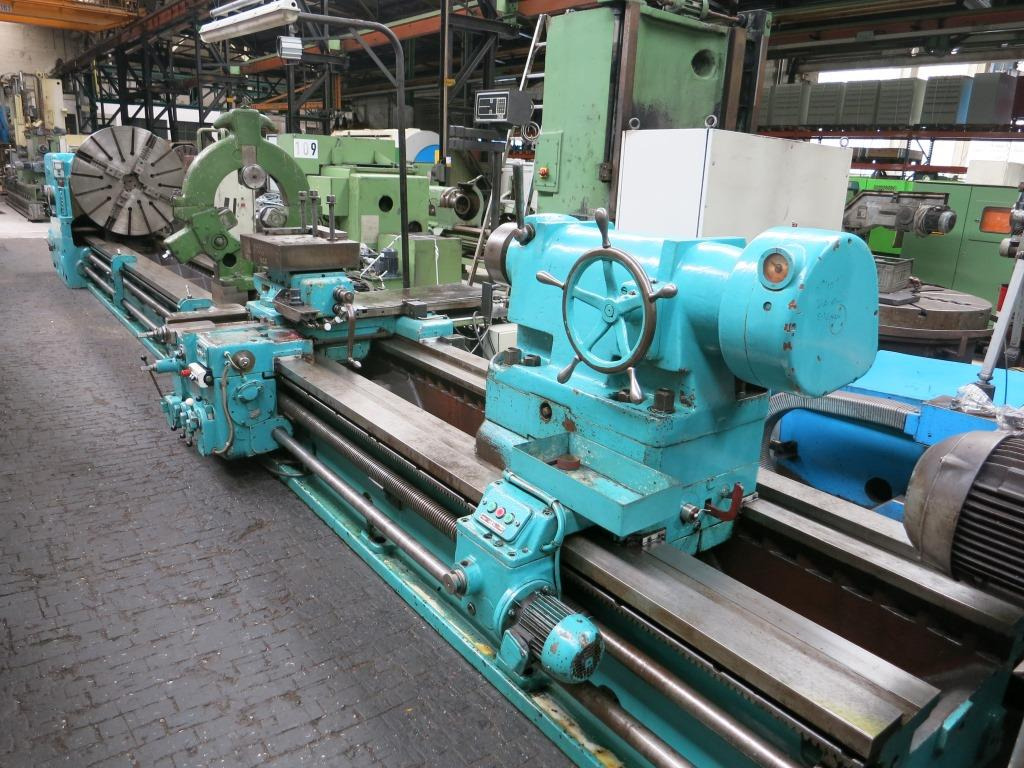

SKODA SRM100x8000

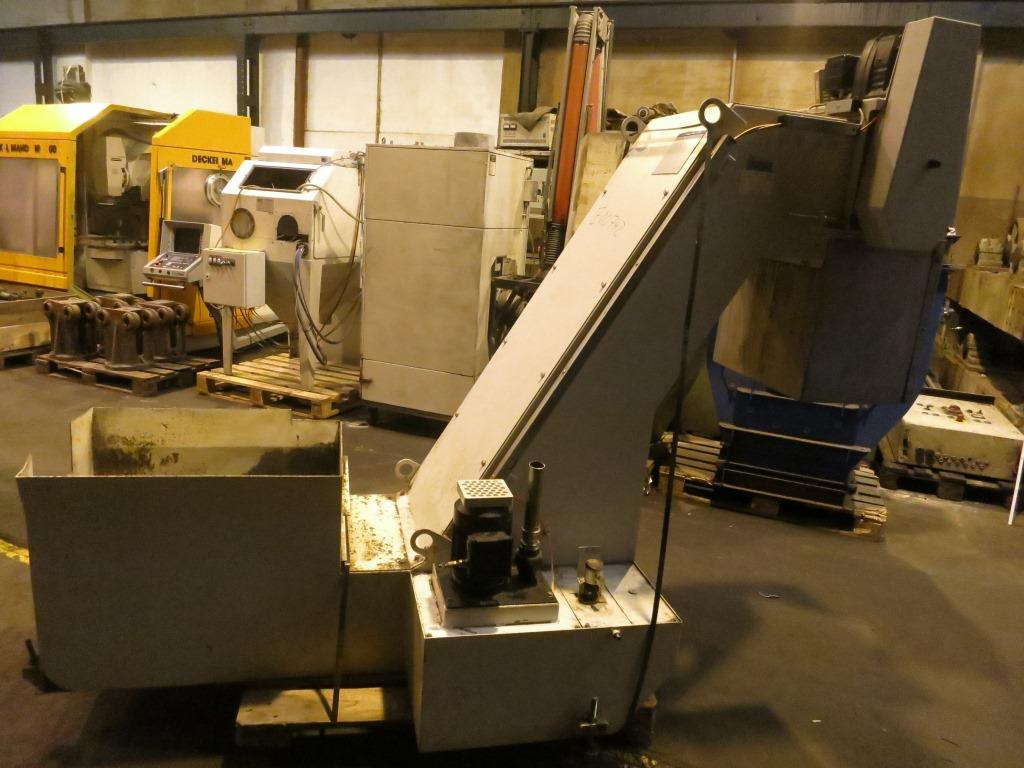

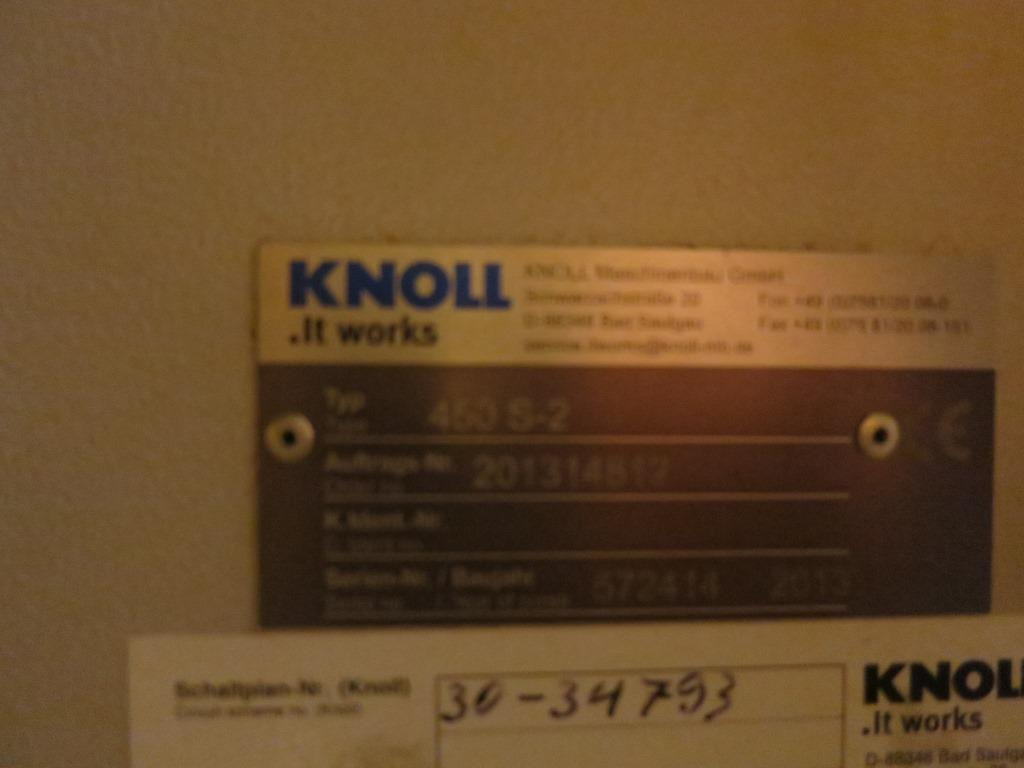

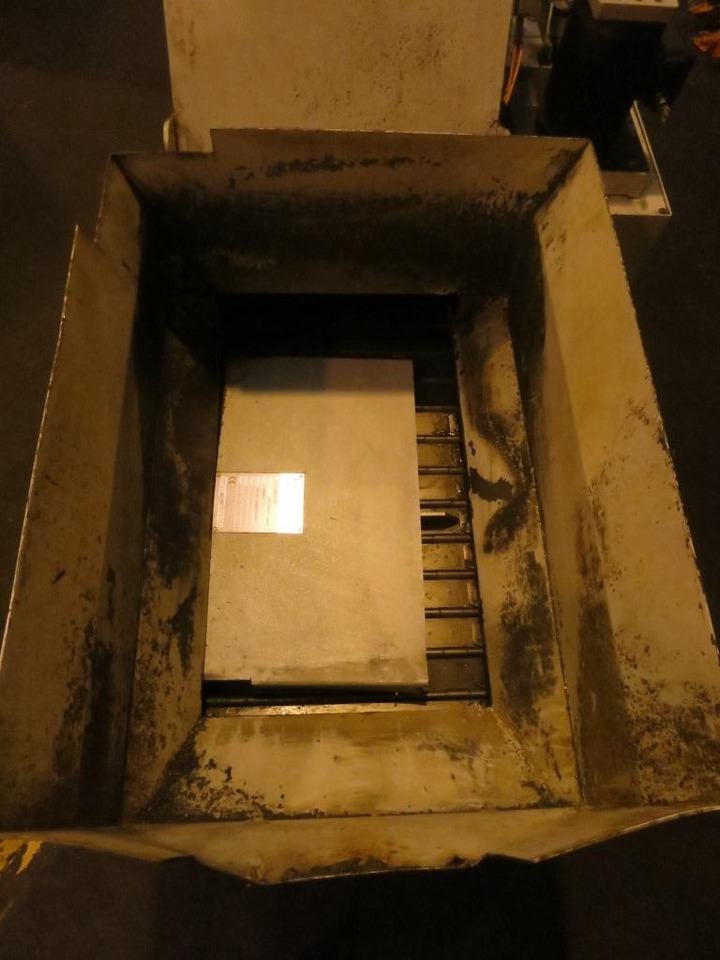

KNOLL 450 S 2

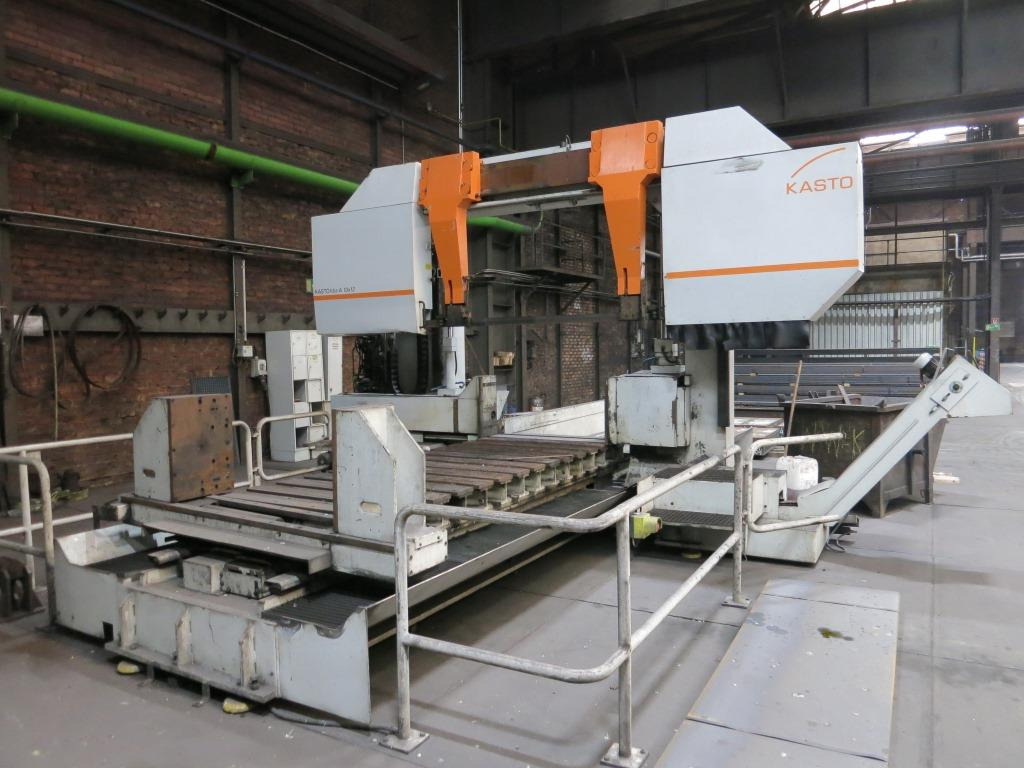

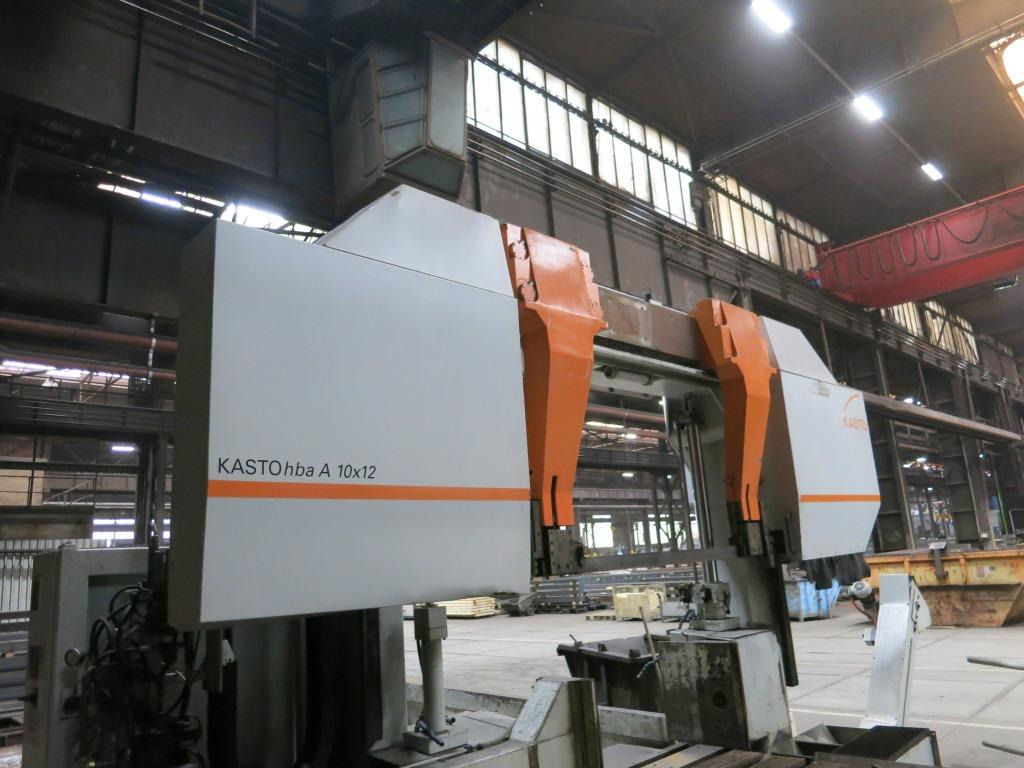

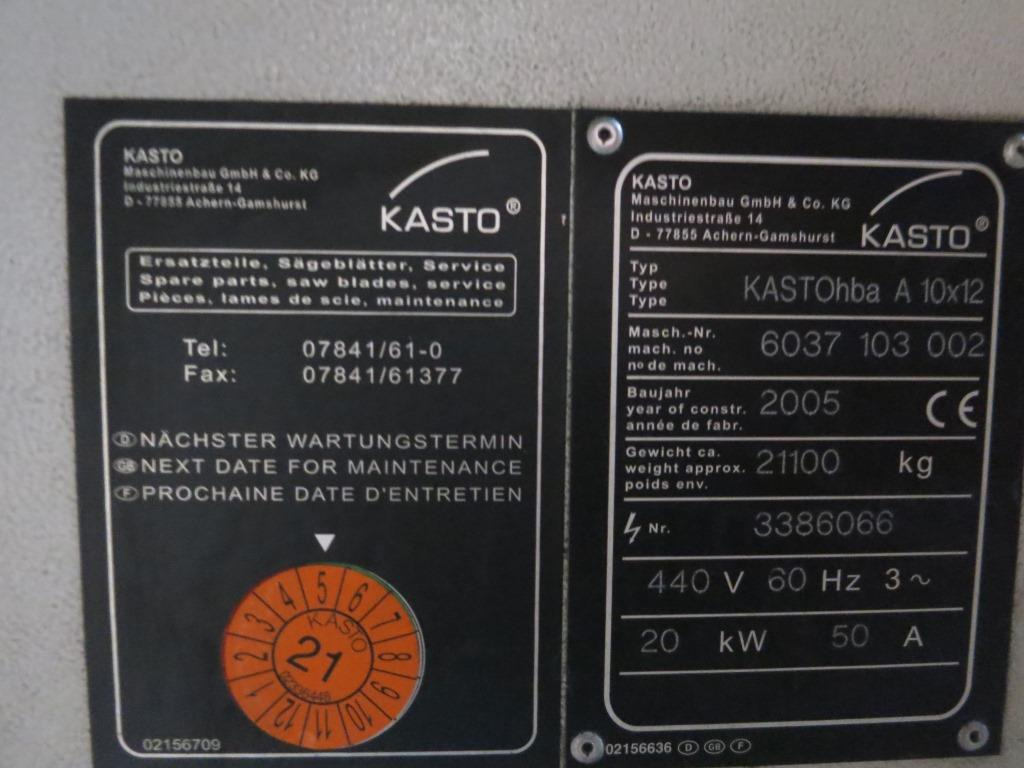

Kasto HBA A10x12

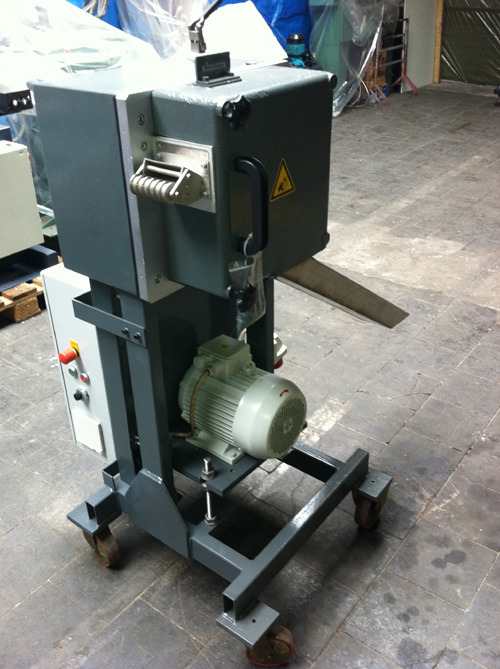

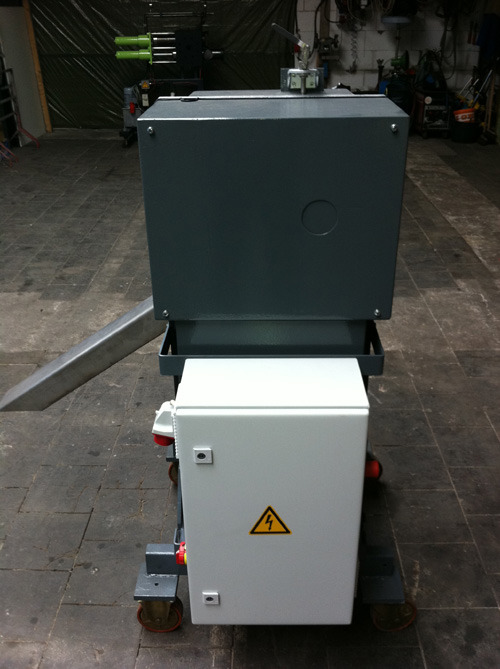

Stranggranulator SGS-100

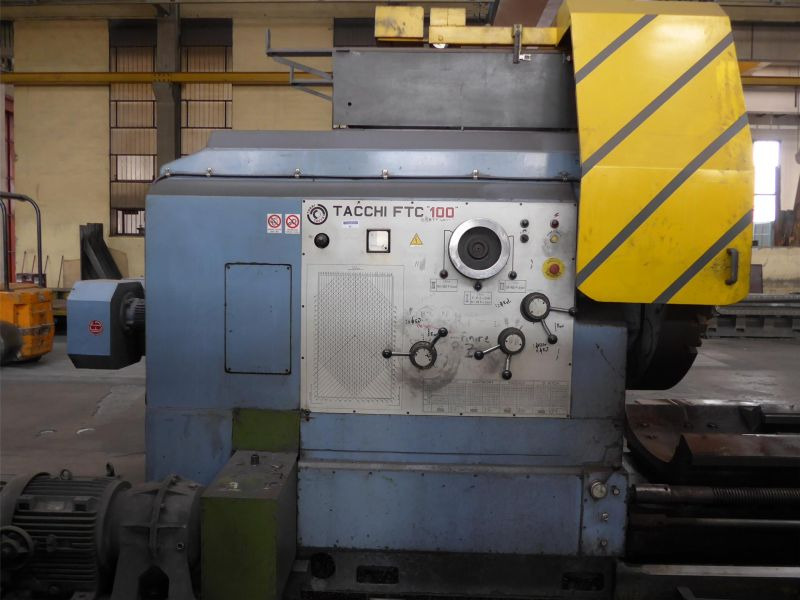

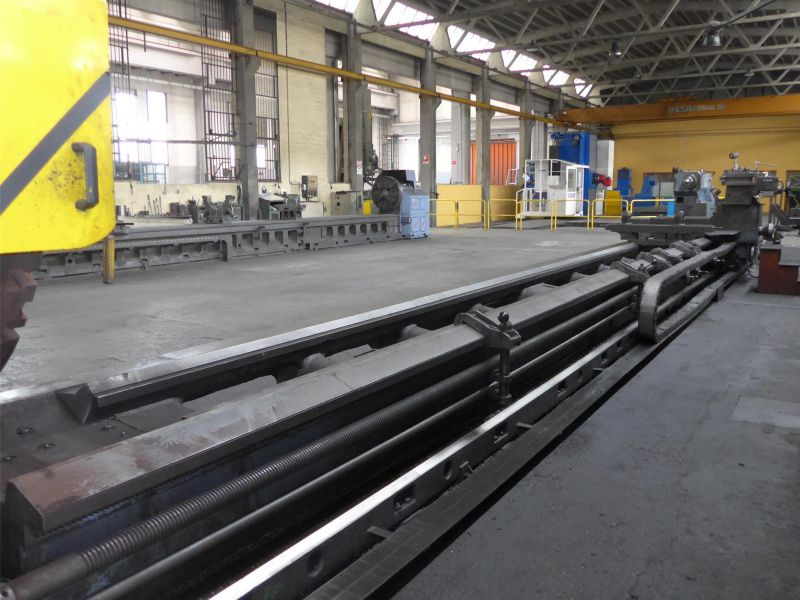

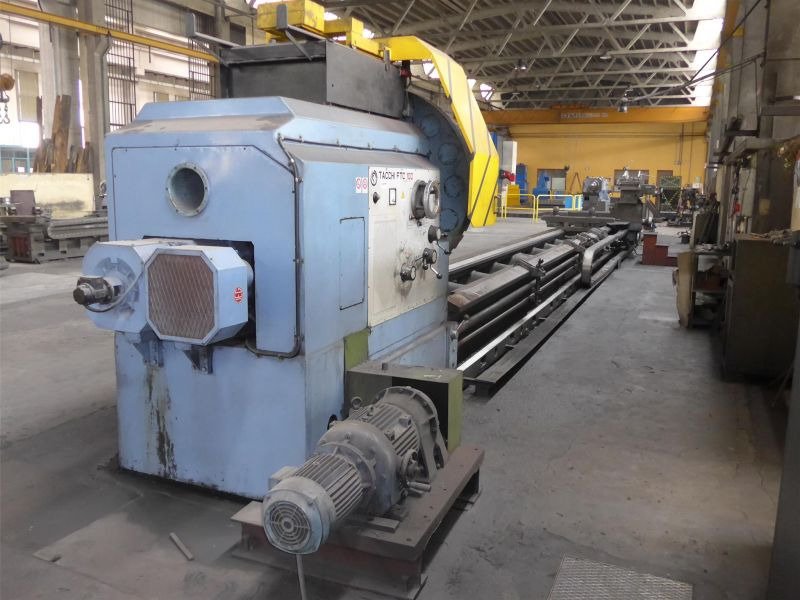

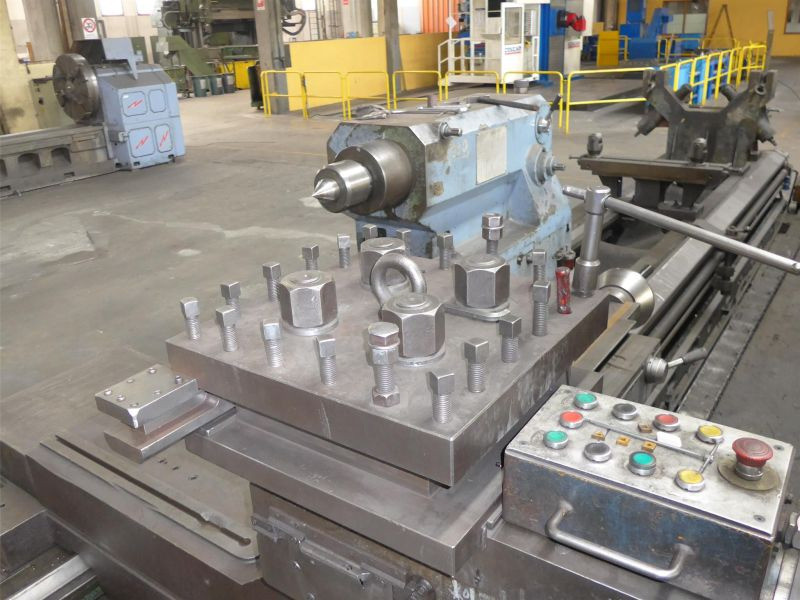

TACCHI FTC 100

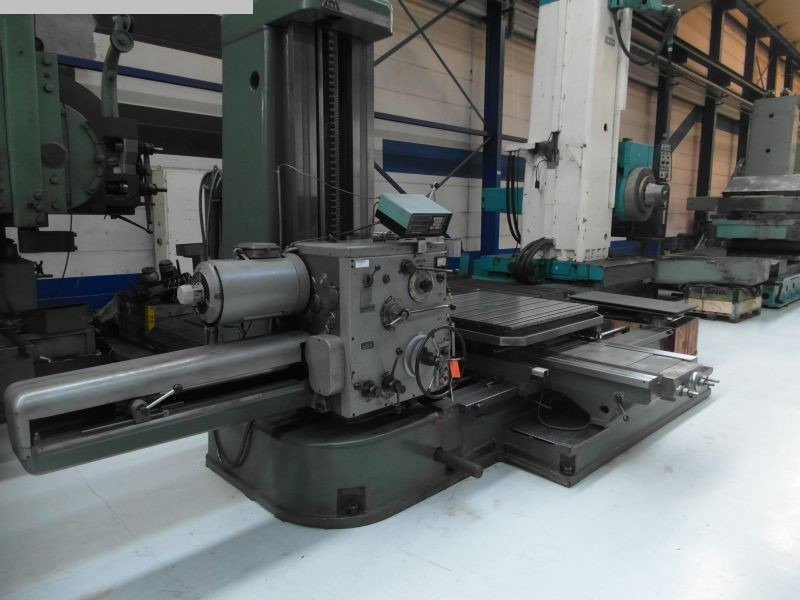

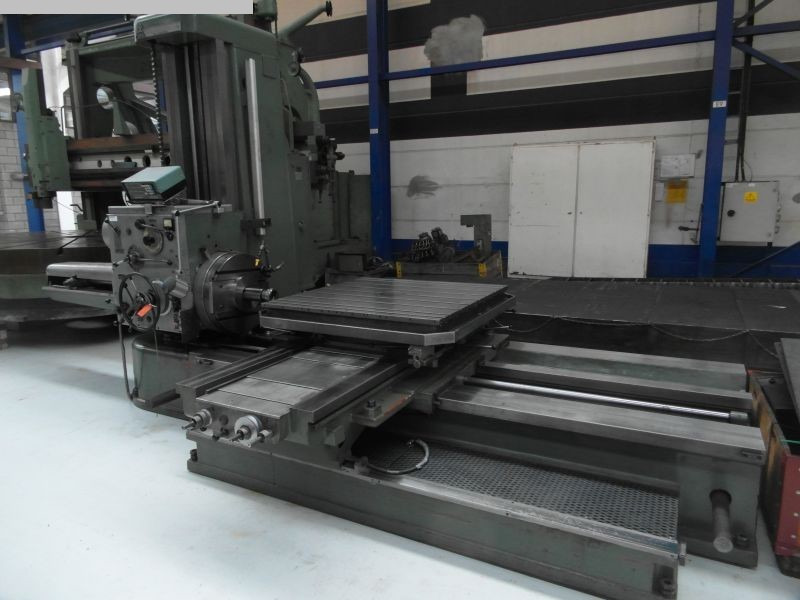

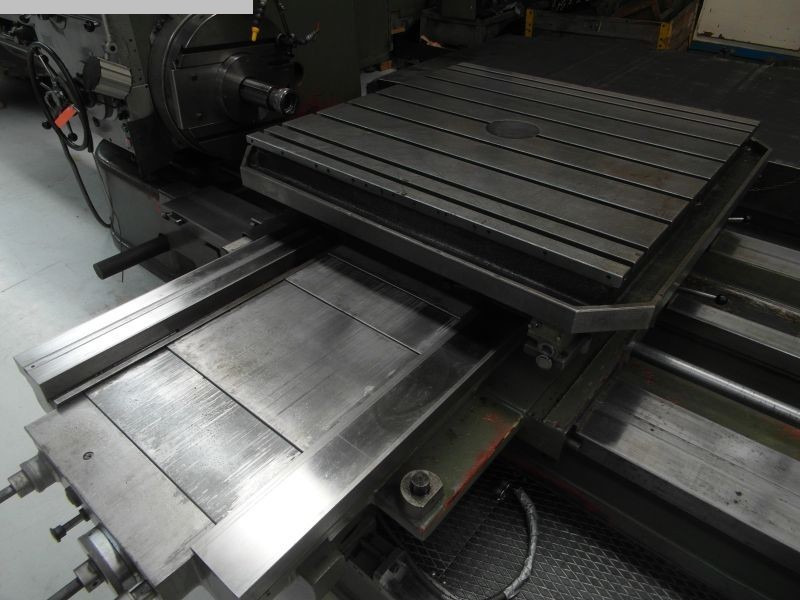

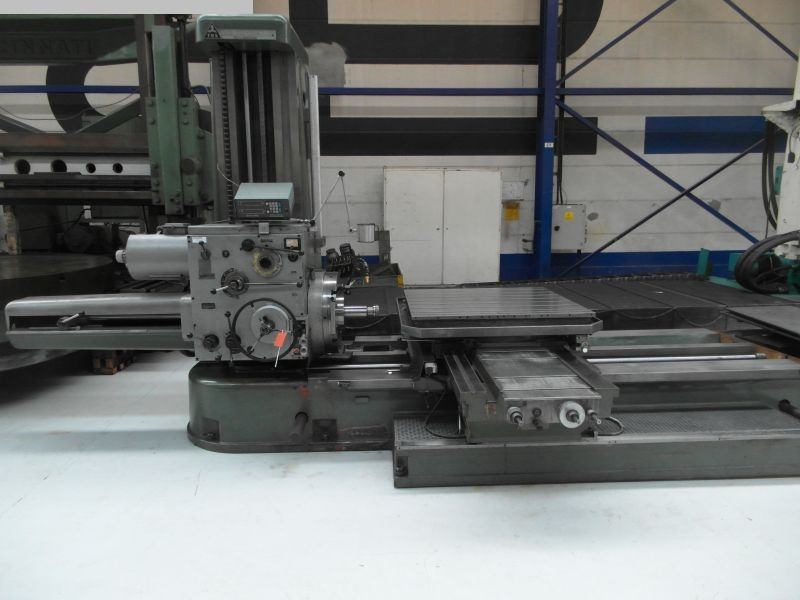

TOS W 100

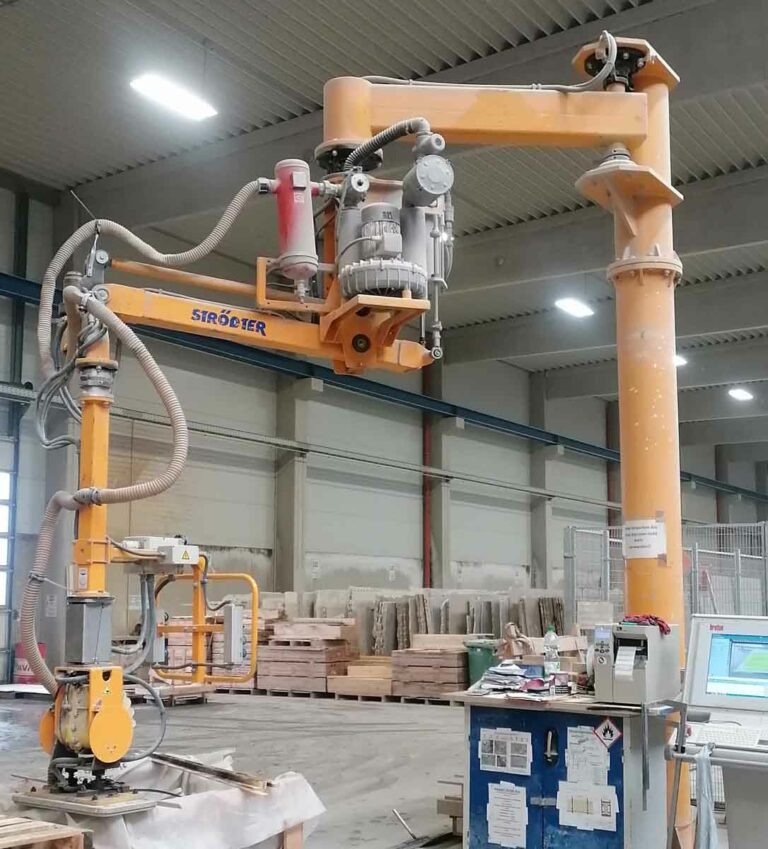

Strödter Vigomat VP 250-2,5 – articulated manipulators / Knickmanipulatoren
Tornio a controllo numerico Biglia B436 Y2
Máquina para metal Pfiffner 2x RT 100-12
Publicado: 3mes(es) 28d.
Publicado: 3mes(es) 28d.
El anuncio ha sido borrado de nuestra base de datos. Puede pedir: Pfiffner 2x RT 100-12
Colocar un anuncio de búsquedaGewerbering 6, D-82140 Olching
Technical Datasheet: show contacts%20Datenblatt_89-000358.pdf

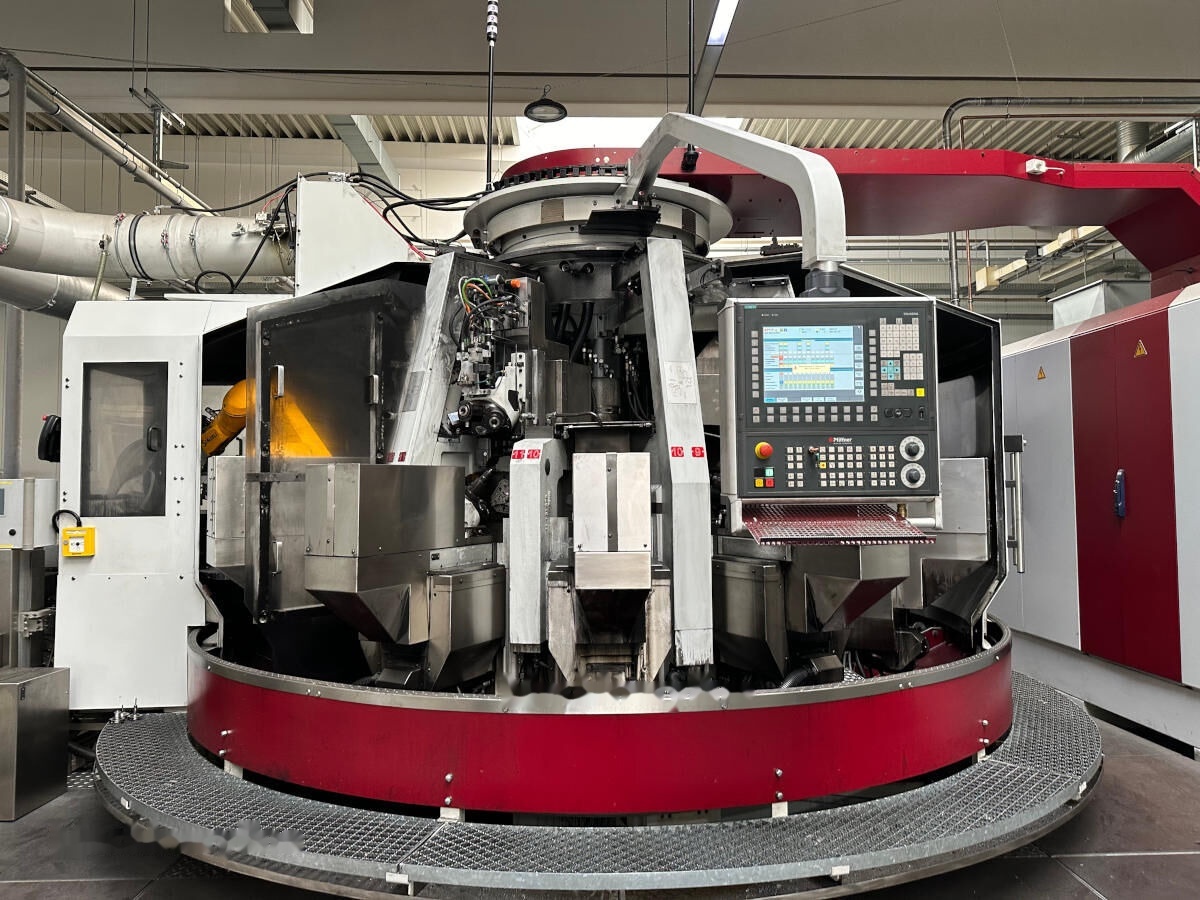

Pfiffner 2x RT 100-12
Control : Siemens 840 D
____________
Description
Rotary-Indexing-table/Spindle
Clamping stations:12 motorised spindles
Drive:Torque drive
water-cooled
Position measuring system:Direct
Switching time:1.5 seconds
Spindles:Water-cooled motor spindles
C-axes:0.001°
hydraulic clamping
Speed:5,500 rpm
Clamping device:Chuck
Basic modules
Technology:Positioning module
3-axis
X-axis:50 mm
Y-axis:100 mm
Z-axis:100 mm
Position measuring systems:Direct in all axes
Coolant supply:Integrated
Workpiece size (max.):100 x 100 x 100 mm
Station 1
Horizontal:feeding of raw parts (indexing conveyor + Stäubli robot)
Vertical:Measuring raw part
Station 2
Horizontal:4-fold turret without drive
Vertical:Measuring reclamping error (C-axis zeroing)
Station 3
Horizontal:4-fold turret without drive
Vertical:Not used
Station 4
Horizontal:4-fold turret without drive
Vertical:Not used
Station 5
Horizontal:6-position turret with WAN
10,000 rpm
Vertical:6-position turret with WAN 10,000 rpm
Station 6
Horizontal:4-fold turret without drive
Vertical:Not used
Station 7
Horizontal:6-position turret with WAN
10,000 rpm
Vertical:Not used
Station 8
Horizontal:6-position turret with WAN
10,000 rpm
Vertical:Not used
Station 9
Horizontal:4-fold turret without drive
Vertical:Not used
Station 10
Horizontal:6-position turret with WAN
10,000 rpm
Vertical:Not used
Station 11
Horizontal:6-position turret with WAN
10,000 rpm
Vertical:6-position turret with WAN 10,000 rpm
Station 12
Horizontal:Charging/discharging unit with double swivelling gripper + discharging belt
Equipment
Chipmanagement:Chip conveyor
High preassure unit:Cooling unit 50 bar
Toolmonitoring:Toolbreaktagecontrol ARTIS
Rawmaterialfeed:Conveyorbelt with robot
Finishpartremoval:Conveyor with 3-way switch
Oilmistseparation:Electrostatic filter
Fire extraction system:Kraft + Bauer
Part labelling:Laser
Parts cleaning:HESO cleaning system
