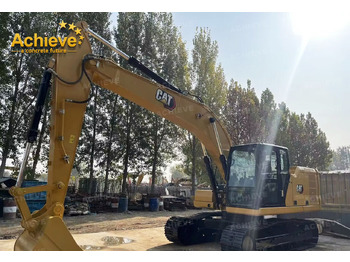

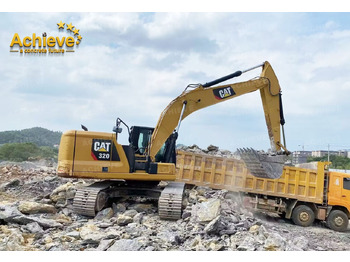

Excavadora de cadenas Caterpillar Medium Excavator 320 GC 2020 1800hours 【ACHIEVE】TOP CONDITION!!!

【ACHIEVE】TOP CONDITION!!! Medium Excavator 320 GC 2020 1800hours Top Brand Excavator 320gc 20 Ton Crawler Excavator for Sale

Main technical specifications

Net Power - ISO 9249

109.1 kW

Operating Weight

20600 kg

Maximum digging depth

6630 mm

Overview

Reliable performance and low hourly operating cost

The Cat® 320 GC offers an excellent balance of reliable performance, operator productivity features and reduced costs. The 320 GC is equipped with a C4.4 engine and an aftertreatment system that eliminates downtime and diesel exhaust fluid (DEF) and meets China National IV non-road emission standards.

advantage

Up to 20% reduction in fuel consumption

A precise combination of low engine speed and a large hydraulic pump delivers class-leading performance while reducing fuel consumption.

Improved reliability and efficiency

The advanced electro-hydraulic system provides an excellent balance of power and efficiency while giving you the control you need for your precise digging requirements.

Up to 20% reduction in maintenance costs

Service intervals are extended and more synchronized than previous models, so you can get more work done at a lower cost.

Latest Features

Low fuel consumption, high performance

Reduced maintenance costs

Stable, reliable and trustworthy

You can work safely and return home safely every day

Easy to operate

Comfortable work

Sustainability

engine

Net Power - ISO 9249 109.1 kW

Net Power - ISO 9249 (DIN) 148 hp (Metric)

Engine Model Cat C4.4

Engine Power - ISO 14396 110 kW

Engine power - ISO 14396 (DIN) 150 hp (Metric)

Cylinder diameter 105 mm

stroke 127 mm

Displacement 4.4 l

Biodiesel Performance Up to B20 grade can be used¹

emission Meets China National IV non-road emission standards.

Note (1) Net power advertised is the power available at the flywheel at 2000 rpm when the engine is equipped with fan, intake system, exhaust system and alternator. The power advertised is tested to the specified standard in effect at the time of manufacture.

Note (2) ¹Cat diesel engines require ULSD (Ultra-Low Sulfur Diesel, 15 ppm or less) or blends of ULSD with the following lower carbon intensity fuels: up to 20% biodiesel FAME (Fatty Acid Methyl Ester)* or up to 100% renewable diesel, HVO (Hydrotreated Vegetable Oil) and GTL (Gas-to-liquid) fuels. Refer to guidelines for successful application. Consult your Cat dealer or Caterpillar Machine Oil Recommendations (SEBU6250) for details. *Engine without aftertreatment equipment can use up to 100% biodiesel blends (for blends above 20% biodiesel, consult your Cat dealer). Tailpipe greenhouse gas emissions of lower carbon intensity fuels are similar to conventional fuels.

Hydraulic system

Main System – Maximum Flow 429 l/min (113 gal/min)

Maximum Pressure - Equipment 35000 kPa

Maximum Pressure - Travel 34300 kPa

Maximum Pressure - Swing 25000 kPa

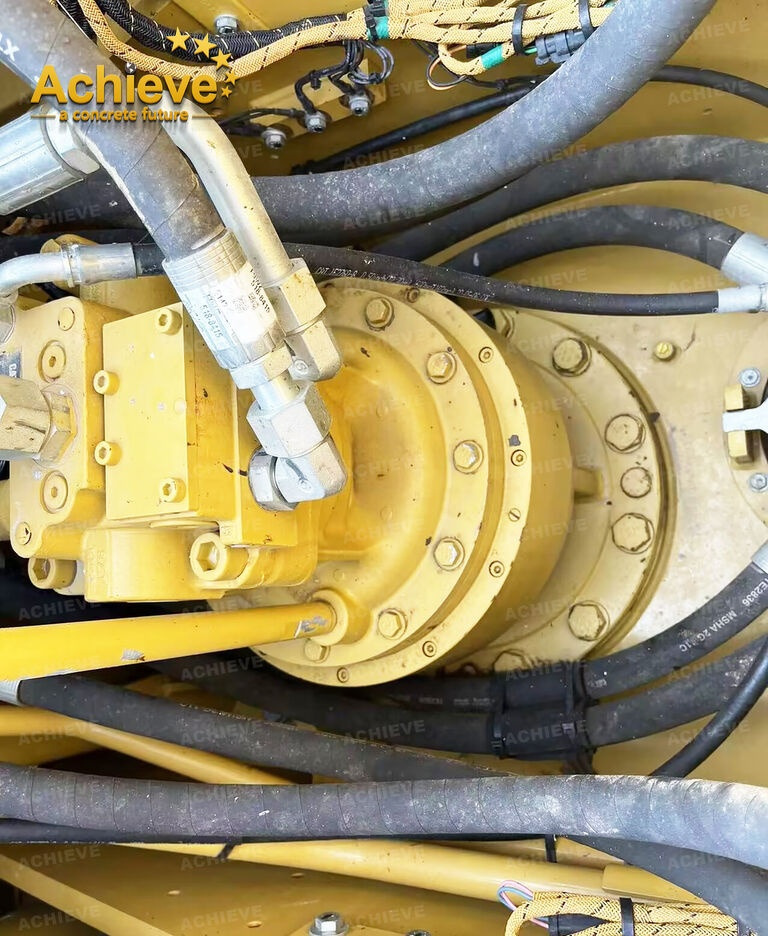

Rotating mechanism

Rotation speed 11.3 r/min

Maximum rotation torque 74.4 kN·m

weight

Operating Weight 20600 kg

Note Medium undercarriage, reach boom, R2.9 (9'6") stick, General Duty (GD) 1.1 m³ (1.44 yd³) bucket, 600 mm (24") triple grouser shoes and 3700 kg (8,200 lb) counterweight.

Maintenance refill capacity

Fuel tank capacity 345 l

Cooling system 25 l

Engine oil 15 l

Slewing Drive - Each 12 l

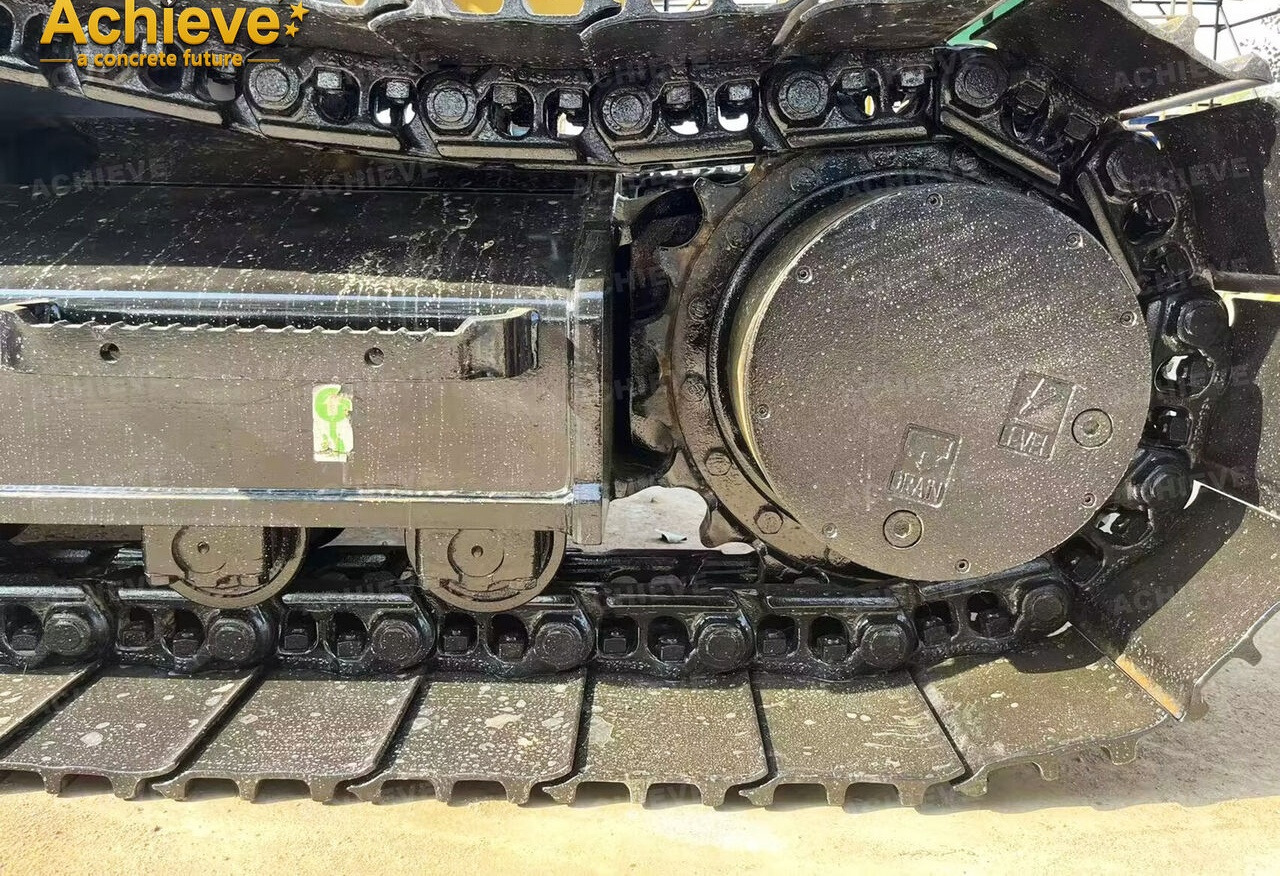

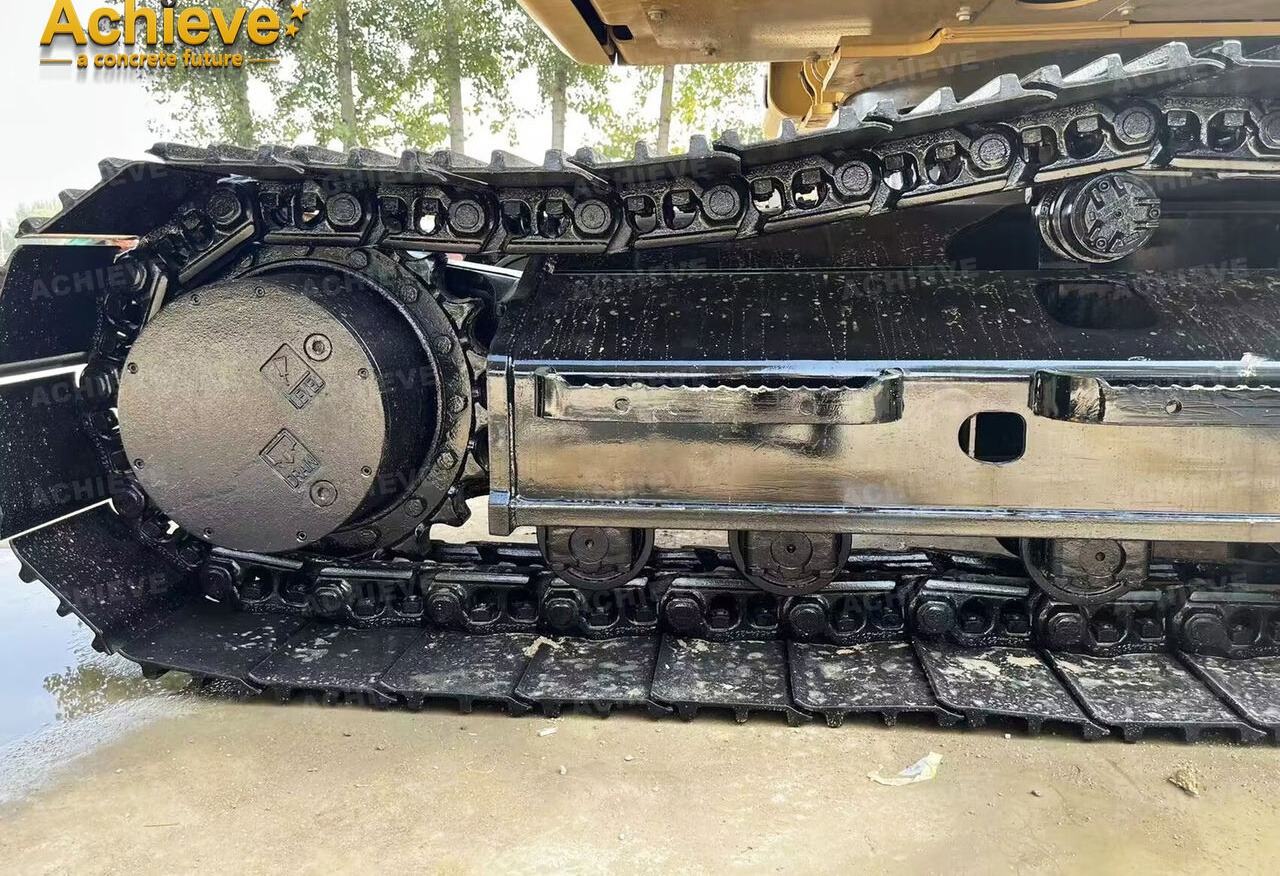

Final Drives - Each 4 l

Hydraulic system - including tank 234 l

Hydraulic oil tank 115 l

size

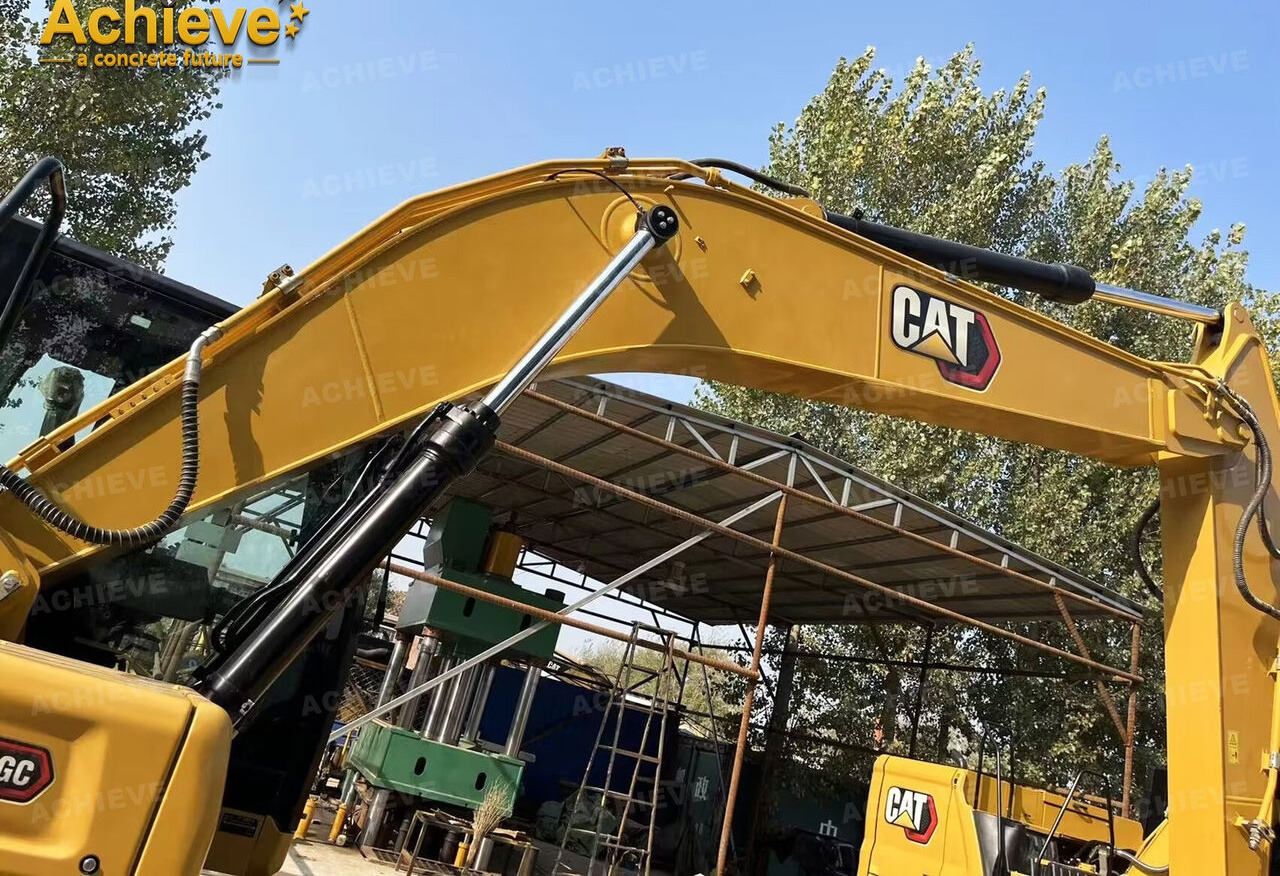

Boom Reach 5.7 m (18'8")

Stick Reach 2.9 m (9'6")

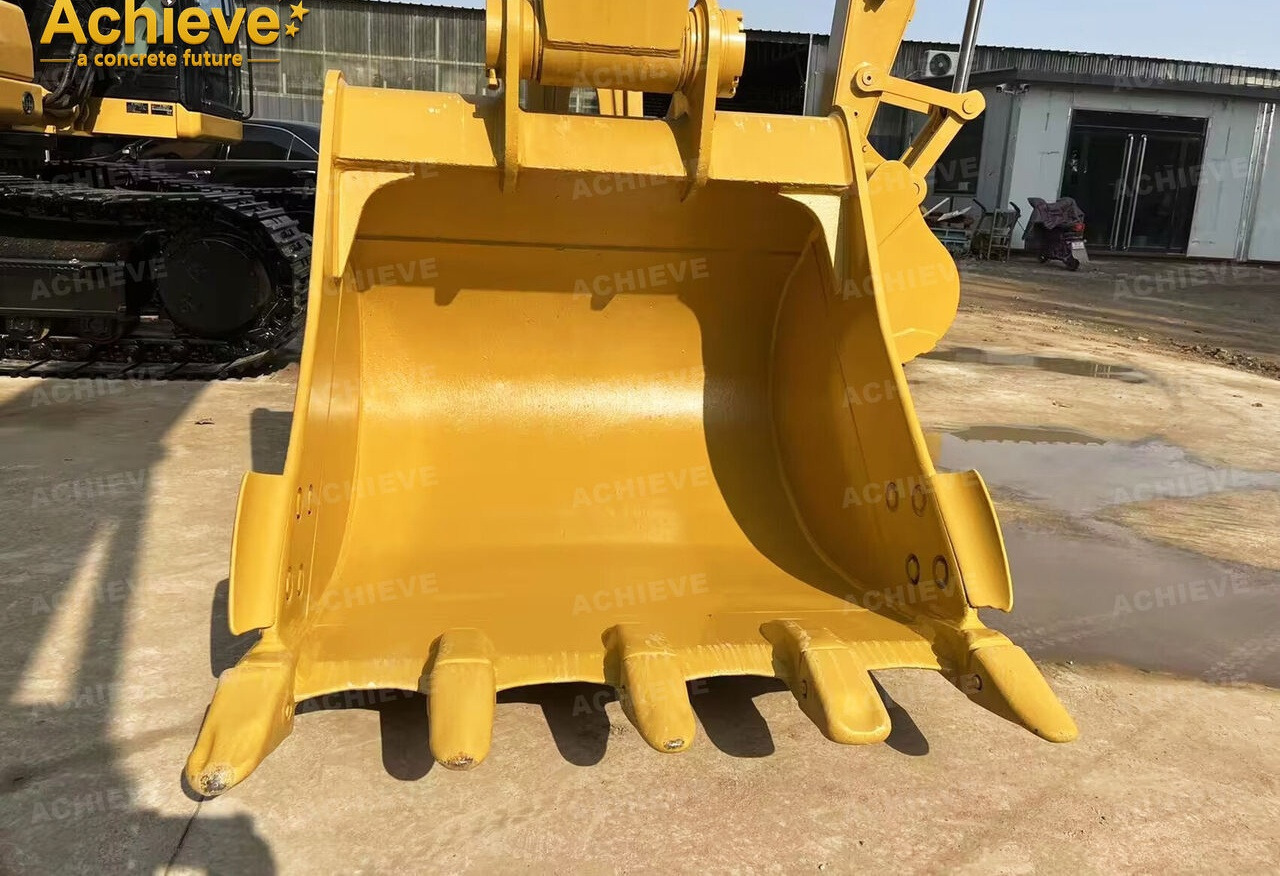

Bucket 1 m³ (1.31 yd³)

Shipping Height – Top of Cab 2960 mm

Armrest height 2950 mm

Shipping Length 9530 mm

Tail turning radius 2830 mm

Counterweight clearance 1050 mm

Ground Clearance 470 mm

Track length 4250 mm

Center distance of track rollers 3450 mm

Track gauge 2380 mm

Transport width 2980 mm

Working range and force

Maximum digging depth 6630 mm

Boom Reach 5.7 m (18'8")

Stick Reach 2.9 m (9'6")

Bucket 1 m³ (1.31 yd³)

Maximum ground reach 9770 mm

Maximum cut height 9440 mm

Maximum loading height 6580 mm

Minimum loading height 2260 mm

2440 mm (8 ft) maximum cut depth with flat bottom 6460 mm

Maximum vertical wall digging depth 6010 mm

Bucket Breakout Force - ISO 129 kN

Stick Breaking Force - ISO 99 kN
